Peeling off QR Code Phishing Onion: Revealing the Hidden Layers of Deceit

The Trellix Advanced Research Center recently noticed an attack campaign with an acute spike of phishing emails

Introduction:

Malicious actors always seek innovative ways to bypass detection. The Trellix Advanced Research Center recently noticed an attack campaign with an acute spike of phishing emails, and another campaign that has been steadily going on since early 2022 with a slight variation in its TTPs. Both campaigns use QR codes as their primary mechanism to evade detection from email security products. Phishing emails in both campaigns were mostly devoid of text URLs, which makes most email security products ineffective because they rely on readable text and URLs for detection.

Use of QR codes for phishing is not new, but there is more to these campaigns. Analysis of these campaigns revealed that malicious actors not only used QR code as a primary means of defence, but also layered evasion tactics to make these campaigns hard to detect. This blog focuses on layered evasion techniques used to evade detections by security products. We also show targeted regions and discuss additional evasion methods that may be potentially used by attackers.

Technical Details:

The following sections describe the campaigns in detail, observed email variants, URL/Host structure and additional evasions used by malicious actors.

Campaign 1: Microsoft Account phishing through QR codes – an acute spike in the phishing stream!

We noticed this campaign from mid-May 2023, wherein the email body only had text and a QR code, both in image form. The subject of the emails advised the receiver to urgently take action regarding multi-factor authentication (e.g., “2FA (Two Factor Authentication) Security Update”). Since most email security products act upon an email body comprised of only text and URL for detection, malicious actors overcame this hurdle by solely using images in the email body. These emails convey that the user needs to use a mobile phone to scan the QR code and proceed further.

The first variant of this campaign contained text and QR code images embedded directly within the email body, and the other variant we encountered had a PDF attachment containing a QR code. Snapshots of both campaigns are shown below:

Fig 1: Emails containing only embedded image having text and QR Code
Fig 2: Emails containing pdf attachment with QR code

Email security vendor Cofense recently about this campaign targeting a major energy company and the usage of trusted domains like bing[.]com, krxd[.]com and cf-ipfs[.]com to redirect users to phishing sites.

During our analysis we found that besides exploiting the trusted domain relationship, malicious actors also used typo-squatted domains like mcwrssoft[.]co and logln-0nline-nnicrosoift3[.]com. We found the campaign to be very widespread, targeting almost all sectors like Fuel & Energy, Finance & Banking, Telecommunications, IT & Software, Healthcare, Transport, and Manufacturing. Some of the hosts that we encountered while analysing this campaign are shown below:

HostsCreation Date
scan[.]barcode-0fflce365[.]app2023-07-19
fix[.]loginmicrosoftonline[.]app2023-07-19
2fa[.]0ffice-authenticate[.]com2023-07-23
Account[.]0ffice-0tp[.]com2023-07-24

Table 1: Additional hosts found

In one instance we found “comcheck[.]cloud” resolved by the QR code in phishing emails. Here we noticed that the malicious attacker created multiple sub-domains corresponding to the targeted entities we have listed below:

Finance and Banking Sector:IT and Software:Shopping and Ecommerce:
bankaudi.comcheck[.]cloud ahlibank.comcheck[.]cloudtrendmicro.comcheck[.]cloud av.comcheck[.]cloud  dianping.comcheck[.]cloud meituan.comcheck[.]cloud
Manufacturing:Healthcare:Fuel & Energy:
porsche.comcheck[.]cloudyuhan.comcheck[.]clouds-oil.comcheck[.]cloud

Methods of Evasion Used by the Malicious Actor

The evasion techniques used by different campaigns vary in complexity and sophistication. Some campaigns employ multiple layers of evasion, while others rely on one. Below are common patterns of evasion that these campaigns use to evade detection and analysis.

Layer 1: Redirection of the Call To Action (CTA) URL

The observed QR codes primarily use redirection from a legitimate domain e.g.: i6x[.]net, cloudflare-ipfs[.]com, amazonaws[.]com, bliflax[.]com, etc. The Landing Pages were often hosted on newly created Domains.

Fig 3: Traffic showing simple redirection

We also observed that in some instances, the qr[.]codes domain was used. The attackers can track the number of times that these QR codes were scanned.

Fig 4: Snapshot of the dashboard of qr[.]codes

Layer 2: Cloudflare Anti-Bot Mechanism Check

We also saw QR code URLs that leverage Cloudflare anti-bot features. This implementation of Cloudflare is provided for free after signing up and threat actors abuse this.

Below is a snippet of the de-obfuscated Cloudflare response highlighting the anti-bot feature used by the threat actor to minimize detection.

Fig 5: De-obfuscated Cloudflare response showing anti-bot mechanism

It performs various checks like “window._phantom”, “window.Buffer”, “navigator.userAgent”, etc. If any of these checks pass, the code will not proceed further, and it would redirect to the failed page.

Layer 3: Captcha Evasion

The URLs can employ another layer of evasion by using a Click Captcha mechanism. This makes it difficult for detection engines to scan the URL, as they require a user interaction. The captcha does not have to be a genuine one; it is only a means of evading automated analysis.

Fig 6: Snapshot of Captcha Evasion

Campaign 2: Fake Chinese subsidy campaign – still a steady horse in the phishing stream!

We have been tracking another QR code phishing campaign since early 2022, where the QR code is either embedded in the email body or is present in a document attachment. Once the QR code is scanned by the user, they are redirected to a “China UnionPay” credit card phishing site. The attacker uses many evasion techniques while redirecting the user to the phishing site as a layered defence. This section discusses those evasions.

Throughout the campaign thus far the modus operandi has remained the same: i.e., Email lures mentioning Chinese Government Subsidies from Ministry of Finance. The email lures mostly come in the form of Chinese Government subsidies where the potential victim is asked to scan for a QR code to get the benefit.

This campaign has been reported by a few security vendors, and this section sheds light on how this campaign has managed to be active for so long and lists the recent changes in their TTPs. What makes this QR code phishing technique unique is that it bypasses most email security products/vendors, as mentioned in the previous campaign. Here too, the emails neither have phishing URL(s) nor have any sort of phishing text that would be detectable and actionable by most email security products.

In past reports, attackers were said to use MS Word documents containing a QR code. Recently however, we found email samples without attachments. Instead, the QR code was directly embedded in the email and didn’t have any actionable text mentioned in the email body. The figure below shows an email sample having an embedded QR code image and no text to act on.

Fig 7: Email containing only an embedded image having text and QR Code

The lure text includes “National Security Public Service Platform” from Ministry of Finance. According to the email headers, the email was sent from ChinaNet’s ISP (AS 4134) bearing IP address 49[.]64[.]71[.]178 and was likely composed on one of the popular mail user agents (MUA) Foxmail 7.2.25.179[cn].

Upon scanning the QR code, the user would be redirected to ffrtd[.]sbs. Further digging into the domain and its infrastructure, we discovered similar domains (mentioned in the IOCs section).

After following this campaign from Feb 2022, we noticed an elaborate layer of evasion techniques.  The table below lists the objects in each layer, which we discuss in detail in the following sections.

Script/Page NameFunctionality
CTA URL Page“jsjiami.com” v4 encrypted page to redirect user to index.html
Landing PageMain page which mentions JS scripts used in campaign
Jump.jsUsed to redirect user based on device and screen resolution
getCookie.jsDefinitions for the userSetCookie() and userCookie() functions
jsconfig.jsSets configuration and http path
getTemplateData.phpAPI endpoint to fetch template data from server
remote.jsUsed for session storage and sending image using html2canvas
setcurrentPage.jsHelps in setting setcurrentPage.php API
setcurrentPage.phpAPI endpoint to fetch current data from server

Table 1: List of objects in attacker scheme

Layer 1: Obfuscation in the CTA URL Page

Upon scanning a QR code in an email, the victim is sent to the CTA URL. This page is commonly obfuscated by jsjiami[.com], a popular tool in mainland China.

De-obfuscated (Figure 9 below), we see that this page simply redirects the victim to another location:

Fig 8: Obfuscated content using JSJIAMI library
Fig 9: De-obfuscated code of (2) and (3) of Fig 8

Note that the de-obfuscated code attained by decrypting data using the CryptoJS library code string in the “to-data” property contains the str, key and iv for decryption.

The victim is then redirected to the “Landing Page” page. This URL is typically in the form of “<ID or MD5 hash>.<domain name always different from main scanned QR code domain>.<tld>”.

For example, if the QR code scanned gets “domain1.sbs”, then the redirected page would be in the form of “e85fe7e7aa21ab4984fbac1e577f7a57.domain2.sbs”. This page (Fig. 10) loads many Javascript objects that are used throughout the campaign.

Fig 10: Landing page showing various loading of JS and AJAX functionality

As we can see from Fig 10 above, Jump.js is loaded first, followed by getCookie.js and jsconfig.js. We can note that the attacker has limited multiple page refreshes during the session. By limiting refreshes, the malicious actor ensures that the landing page’s content remains stable, and that the user doesn’t notice any unusual behaviour while the malicious code carries out its intended actions, including making the AJAX call.

The AJAX POST request is made for getTemplateData.php. If the request succeeds, then a cookie is set, additional objects are fetched, and upuserId and template keys are set for the session, based on the data returned by getTemplateData.php. If the request fails with response code as 5, then the system maintenance page systemMaintenance.html is shown and the openingTime key is set based on the response data.

Layer 2: Screen Resolution & Web Cookies Check

Jump.js, which is part of “Landing Page”, checks if the device’s user agent is for a smart phone. It further checks for the screen resolution having height less than or equal to 1000 pixels and width less than or equal to 800 pixels. If the above criteria are not met, then it will redirect to “pc.html” (shown in Fig 11 below).

Fig 11: Jump.js script

The main task of “getCookie.js” referenced in the “Landing Page” is to set the user cookie through the userSetCookie() function and get the decoded URI through userCookie().

Fig 12: getCookie.js script

It is worth noting that the expiry of the DOM cookie is set to a very high value: i.e., more than a year. Though not being used over “Landing page”, we are not sure why the attacker uses such a long-lasting cookie.  One possibility is that they may look for it in a future campaign to track their targets.

The jsconfig.js script configures the “config.Config.httpPath” property, which is defined in “Landing Page”. This is usually the path to the host name for the attacker’s API, which starts with “api.<domain_name>.<tld>”.

The PHP script getTemplateData.php acts as one of the important API endpoints for this phishing campaign. It returns data in JSON format depending on the request made to the attacker’s server.

Fig 13: getTemplateData.php response from attacker server

As we can see from Figure 13, getTemplateData.php responds with “code”, which is a successful response (response code 0), along with other fields such as “content”, “buttonName”, “title”, “url”, “uid”, “userId”, “socketUrl” and “customerServiceUrl”. These values are used to render the user-visible response lines shown below.

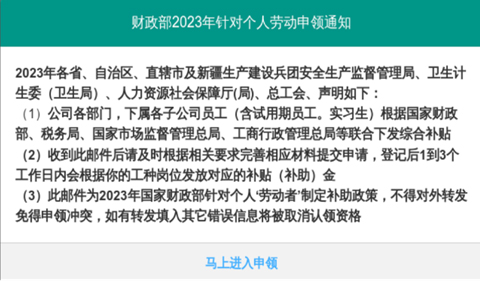

Fig 14: Rendered response to the user
Fig 14.1: Similar rendered response to the user from other analysis

Apart from “title”, “content”, and “buttonName”, which is rendered in the browser, there are other fields such as “url”, which is set to “html/subsidy/index.html”, “uid” and “userId” set to alphanumeric values, “socketUrl” set to <domain_name>.<tld>/remote.js” and “customerServiceUrl”, which is empty in this case. These fields are used in later stages.

Layer 3: Regional Timing Checks

If a request to getTemplateData.php is made outside of working hours in China, the response code served is 5 and, in this case, the systemMaintenance.html page is served. Both the response and the rendered response from getTemplateData.php is shown in the figures below.

Fig 15: getTemplateData.php with response code as “5”
Fig 16: Rendered page from getTemplateData.php which is put in “systemMaintenance.html”

It roughly translates to “System Upgrade/Maintenance” and mentions opening time on “July 15, 2023 07:00”. The request was made exactly at 3:34 P.M. UTC, or 11:34 P.M.  Beijing, China time. Another instance we observed was for 2:49 P.M. UTC and we yet again got a similar response. This indicates the likelihood that the campaign specifically targets Chinese individuals as it operates during China daytime.

Theremote.js javascript is obtained from the “getTemplateData.php” response is usually hosted on a different domain. The main purpose of this script is to send snapshots/images and mouse interaction data to the server via WSS (WebSocket Secure Protocol). The snapshot functionality is provided by the “html2canvas” library. Important functions within this script are “SendscreenImg()” and “run()” shown in Figure 17 below:

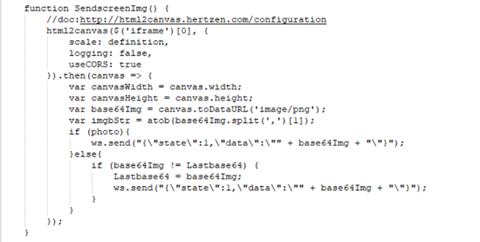

Fig 17: SendscreenImg() function from remote.js

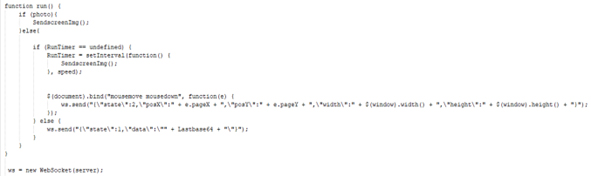

Fig 18: run() function from remote.js

The “SendscreenImg” function captures a screenshot of the content inside an <iframe>, converts it to a base64-encoded PNG image, and sends it over the WebSocket connection. The frequency of sending is determined by the photo and speed settings. And the “run()” function manages the behaviour of sending screen images. It either sends images at a specified interval or sends images only when there is a change in the captured content.

Lastly, the setcurrentPage.js script is used mainly to set conditions for “setcurrentPage.php”. Having said that, this script is loaded by the HTML page to which the user is redirected by remote.js. The page’s path would usually be “/html/subsidy/index.html”. Once the victim passes all these checks, they are greeted by a fake UnionPay phishing website as shown below.

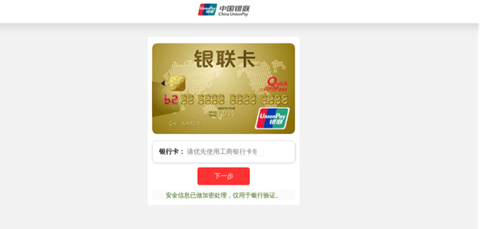

Fig 19: Final phishing page after all checks

Anomaly and Change in TTP While tracking this campaign we also came across one instance where the attacker seemed to test the landing page rendering legitimate content from some shopping site. This is shown in the figure below.

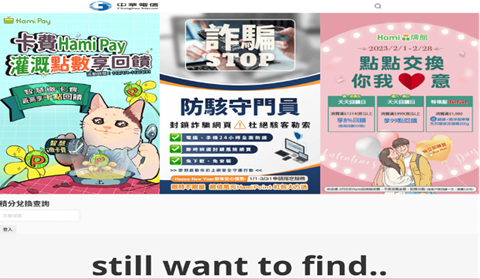

Fig 20: Different rendered landing page

Upon closer inspection we noticed that the “Landing Page” was missing the loading of “               Jump.js”. This is shown in the screenshot below.

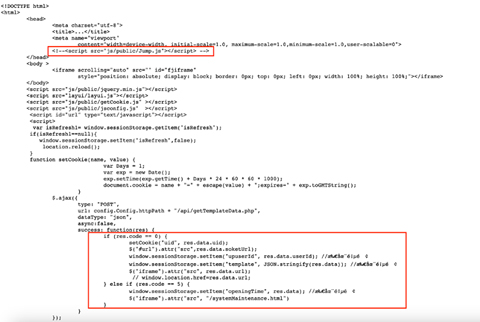

Fig 21: Landing page with missing loading functionality for “Jump.js”

Since  mid-July 2023, we’ve noticed a change in TTP where the malicious actors have changed the file structure. The figure below shows the snapshot of the landing page with randomized Javascript filenames,  making detection through URL and network detection more difficult.

Fig 22: Random javascript names on Landing Page

Upon checking one of the main randomly-named Javascripts, we found that the malicious actor had made significant changes to their API structure and functionality. They are now relying on WebSocket (WS) protocol for request and response mechanisms. The snapshot below shows a beautified version of Javascript with a modular approach followed by attackers.

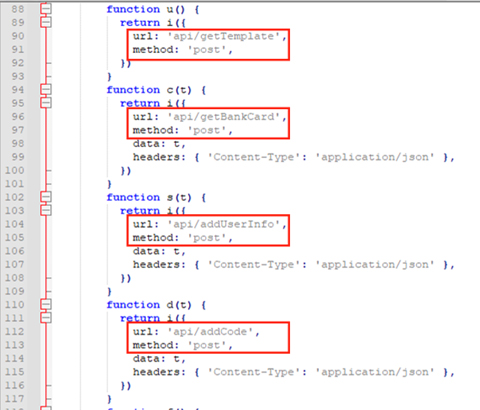

Fig 23: Main functionality for new TTP

Important endpoints are listed in the table below which use WS protocol for request and response.

API Endpoints
api/getBankCardapi/addIdCardapi/addPage
api/addUserInfoapi/addLoginPwdapi/addPhone
api/addCodeapi/addCvnapi/addFrequency
api/getTemplateapi/addPwdapi/addBalance

Table 2: APIs for new TTP

Additional Methods of Evasion

Apart from the evasion methods above, malicious actors could use other evasive methods as well. We’ve briefly jotted down these methods below:

  • Geographic evasion using 3rd party online tools – Online QR code generation tools like me-qr[.]com can be used to prevent requests from geographical regions and certain IPs. One can easily set up a new account and monitor the use of their QR codes. Additionally, one can also limit the scans of their QR codes by either number of scans, or by setting a time limit.

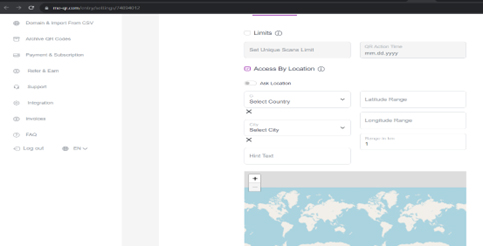

Fig 24: Internal panel for me-qr[.]com
  • Sending QR codes through uncommon email attachments – we’ve already seen above that malicious actors used email attachments like Microsoft documents and PDF files which contained QR codes for redirecting the user to phishing sites. It is just a matter of time before one also notices QR codes being delivered within less common email attachments like OneNote documents or HTML files.
  • Usage of QR code phishing kits – phishing kits available both publicly or sourced from private forums/channels have always attracted malicious authors and script kiddies due to their inherent nature of being less technical to set up. These kits provide many features like bot detection, IP blocking mechanisms, user tracking, etc. There have been few publicly available QR code phishing kit projects that malicious actors could make use of like SquarePhish and EvilQR.
  • Abusing legitimate platforms to host phishing QR code images – phishing authors can make use of legitimate hosting platforms like Google Docs, Microsoft Office 365, etc to host QR code images, thereby exploiting the trust relationship and evading detections.
  • Using dynamic QR codes and serialized QR codes – in dynamic QR code schemes, the destination URL can be changed at any time. So, if for example, the security product scans for the QR code, it would first show a legitimate URL redirecting to a legitimate website, but after some time the redirection could be changed to a phishing website once the email has reached the user’s inbox. Alternatively, in serialized QR code schemes, the QR code is valid only for a single scan. Malicious actors can make use of such a QR code to ensure that it is only used once, thereby thwarting analysis by security products/researchers.

Regions affected: Figure 25 below shows that the regions including the US, Qatar, Denmark, Sweden, Australia, South Africa, Abu Dhabi, Pakistan, India, Singapore and China were affected by the Microsoft QR Code phishing

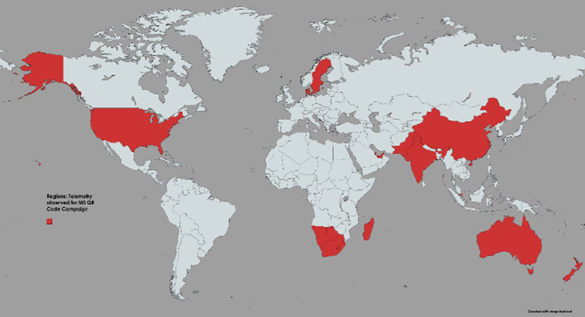

Fig 25: Location telemetry where MS QR code phishing campaign was observed

Figure 26 below shows the regions such as mainland China, Republic of Korea, Hong Kong, Japan, United States, Germany, Switzerland, Australia, Italy, United Kingdom & Saudi Arabia were affected by the fake Chinese subsidy phishing campaign.

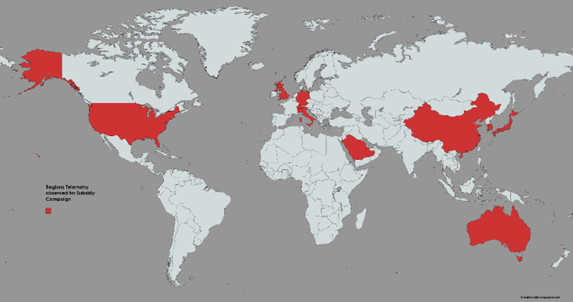

Fig 26: Location telemetry showing Chinese-speaking people who are active during daytime in China

Conclusion

According to one survey over 84% of cell phone users have scanned a QR code at least once. And it’s predicted that in a few years there will be about 1 billion more smart phones than there are today. Such stats without a doubt predict increasing reliance on QR codes for various uses such as payments, subscription services, automation, manufacturing, and many other sectors.

These trends would naturally widen the attack surface on which QR codes operate, making them one of the most common attack vectors for phishing/malicious purposes. Security products should evolve to detect such trivial yet effective phishing techniques.

Fortunately, Trellix recently rolled out the QR code phishing detection module for its ETP product. The plugin extracts and scans the QR code images embedded within the email and/or attachments, and extracts URLs from it, which are then passed for further phishing analysis. This way Trellix can detect such notorious campaigns dynamically, campaigns which were previously hard to detect.

Our recommendations for everyone surfing the Internet or receiving emails and phone messages is to proceed with caution whenever you are prompted to scan for a QR code in public areas. It’s always good to have some protection on the device from which you’re scanning QR codes. Some specific guidelines to follow:

  • If scanning of QR code is absolutely required, then use online web services to scan for QR codes on sandboxed device when you’re not sure about the authenticity of source of QR codes.
  • Be extremely wary of instances when you’re asked to provide your personal information or financial information or some other credentials on the webpage which has been directed by scanning QR codes.
  • Wherever possible, enroll for multi-factor authentication. This comes as a relief when you accidentally fall into such trap and reveal your password on phishing sites.
  • QR Code scanning devices like mobile phones are nowadays equipped with the functionality of showing what content the QR code was able to resolve. Be cautious when QR code resolves to some unknown website or directs you to open some application. It would be wise to have some reputed QR code scanning app on your hand-held device which shows the resolved content and doesn’t directly redirect you to website/app.

Detection Summary:

EX/NX/MVXFEC_Phish_PDF_Generic_3 FEC_Phish_PDF_Generic_2 FE_Phish_OLE_Generic_1 Phish.URL Phish.LIVE.DTI.URL
HX AV/MGTrojan.GenericKD.69154xxx
ENSDOC/Phishing.gen.d trojan PDF/Phishing.ak trojan PDF/Phishing.aq trojan

Attributions:

We would like to give proper credit and recognition to the various elements that have contributed to the content of this blog.

  • Telemetry Region Map created using MapChart
